Engine testing today must be economical. The simple requirement reads as follows: “Collect all necessary data in the shortest time possible.” In this regard, setup times represent the most significant bottleneck, which has a decisive impact on the economy of engine testing.
This is a bottleneck whose optimization potential ERNST uses at 100%.
As with every great idea, the core premise is very simple here: ERNST’s palett system shifts the time-consuming part of the necessary setup and disassembly work away from the test bed to a separate setup station.
As a system supplier, ERNST offers both the necessary mechanics and the associated software for this.
Drawings
Properties
- High flexibility in terms of engine designs
- Downtimes reduced to a minimum via setup station
- External media filling via setup station
- High flexibility in regards of powertrain (dyno / DUT)
- Semi-automated docking process within a few seconds
- Modular system
- Customer-specific design
- Turnkey solution by ERNST
Details

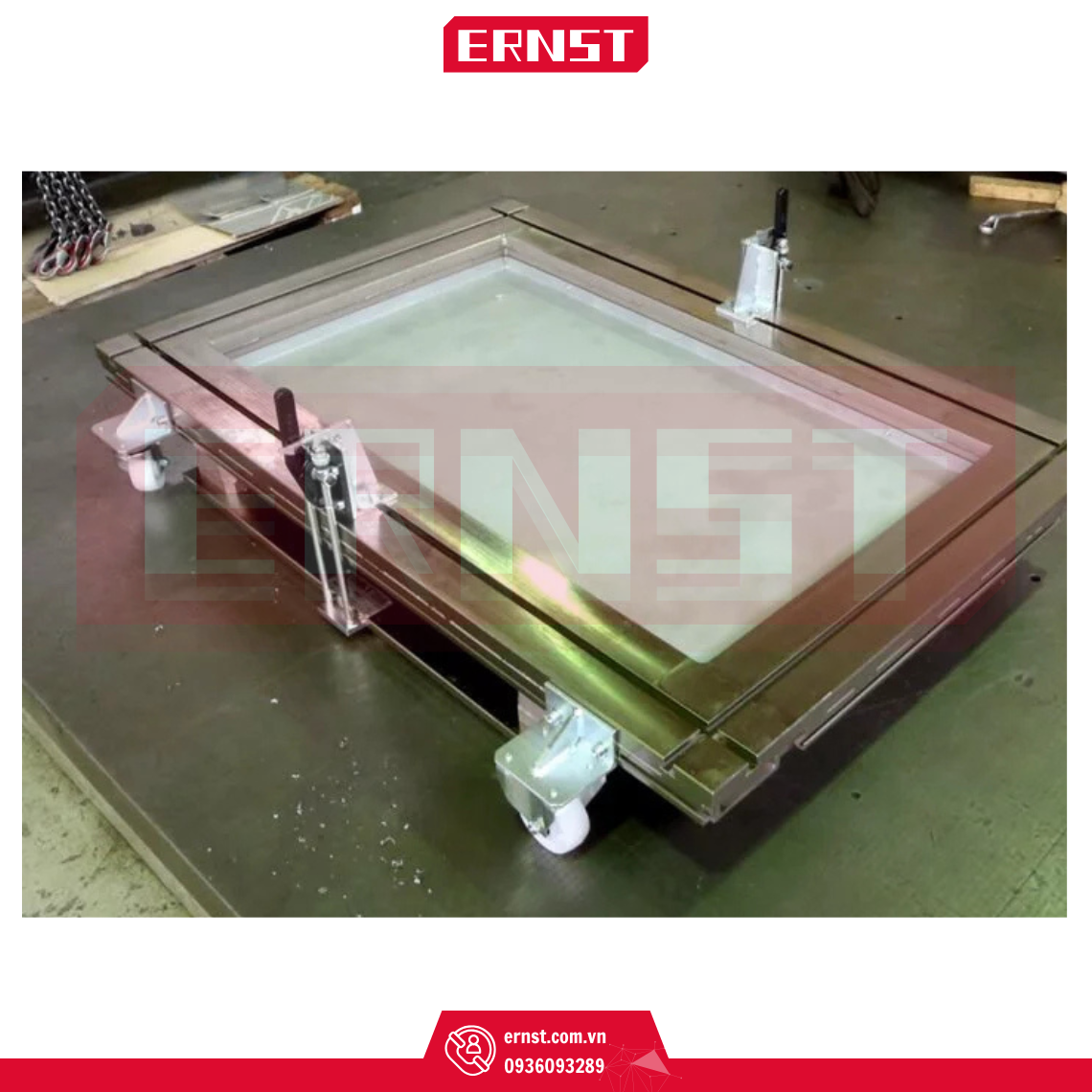

Palett trolley

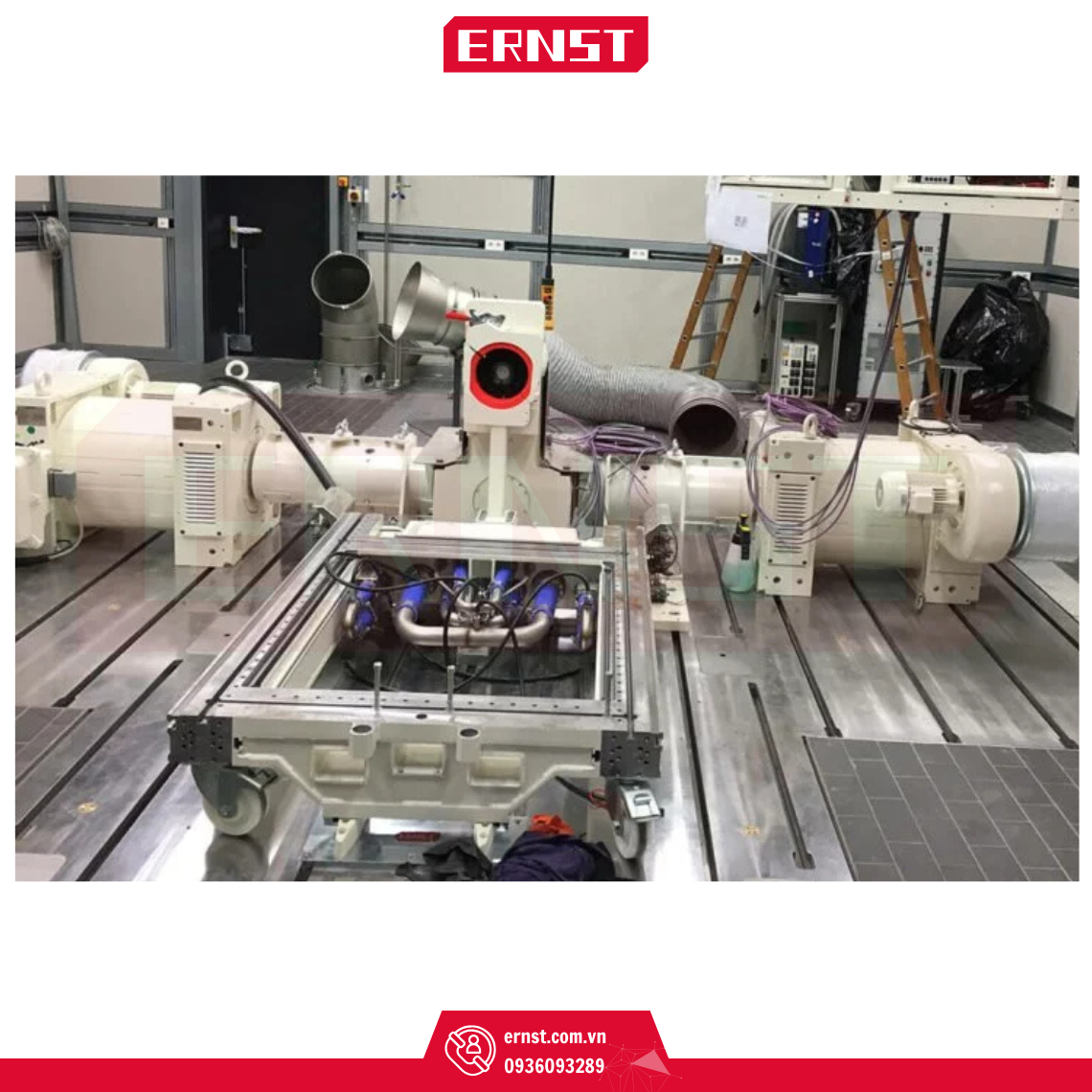

Docking station
Options
Palett trolley
Docking station

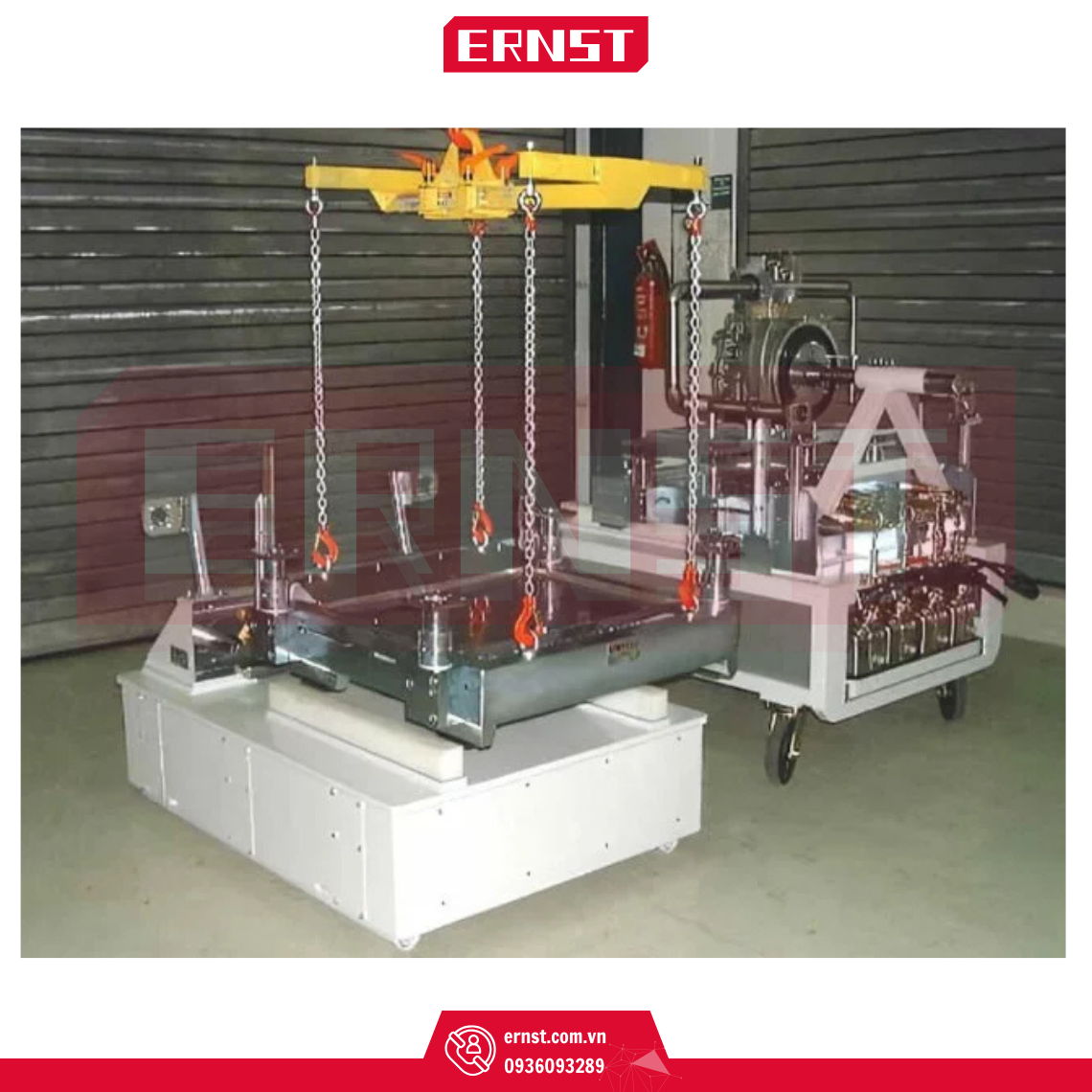

Setup station
Additional options (test cell)
Product examples

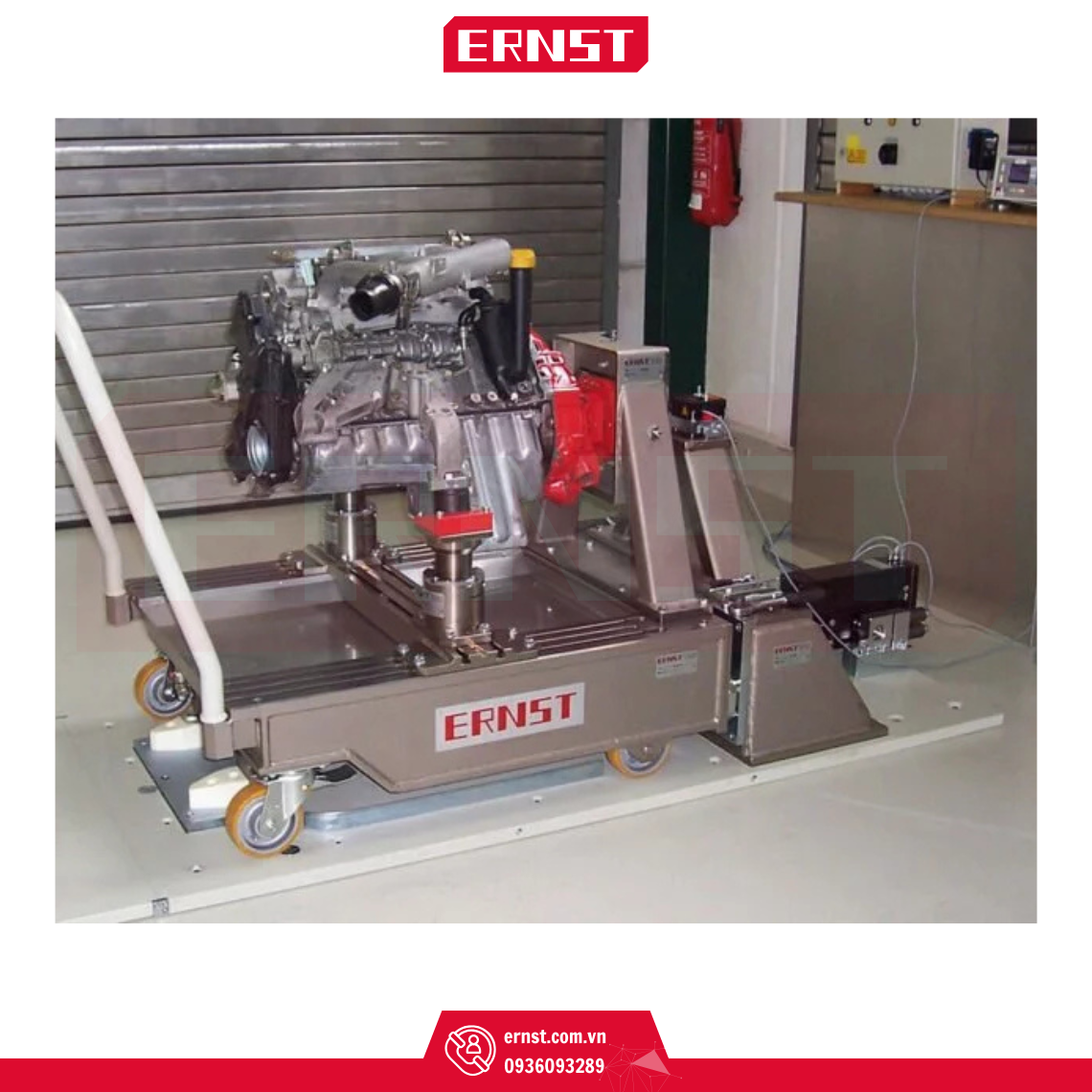

Palett system Ferrari MaranelloTechnical data:
- Quick couplings: 3 x NW10 | 2 x NW32 | 2 x NW50
- Additional coupling “blow by” measurement 1 x NW25
- Application for sport engines
- OPTION: Electrical surveying system for setup station
- OPTION: Electrical docking system (setup station)
- OPTION: Electrical docking system (test cells)
- OPTION: Nickel surface
- OPTION: Traverse
- OPTION: Engine supports (Accessories)
- OPTION: Quick couplings (Accessories)
- OPTION: Media block
Palett system Porsche WeissachTechnical data:
- Quick couplings: 2 x NW10 | 6 x NW25 | 2 x NW32 | 2 x NW50
- Application for small series and sports motors as well as complete powertrains
- Trolley configurations: engine palett, powertrain palett
- OPTION: Mechanical docking system (setup station)
- OPTION: Hydraulic docking system (test cells)
- OPTION: Ball valve in the cooling medium circuit
- OPTION: Traverse
- OPTION: Engine supports (Accessories)
- OPTION: Quick couplings (Accessories)
- OPTION: Master Mover
- OPTION: Base frames (Accessories)
- OPTION: Alignment gauge
- OPTION: Media block
Palett system Audi NeckarsulmTechnical data:
- Quick couplings: 4 x NW10 | 4 x NW16 | 2 x NW25 | 2 x NW40 | 2 x NW50
- Application for serial motors
- OPTION: Mechanical docking system (setup station)
- OPTION: Hydraulic docking system (test cells)
- OPTION: Additional limit switch for docking process (intermediate stop)
- OPTION: Nickel surface
- OPTION: Ball valve in the cooling medium circuit
- OPTION: Traverse
- OPTION: Engine supports (Accessories)
- OPTION: Quick couplings (Accessories)
- OPTION: Alignment gauge
- OPTION: Media block

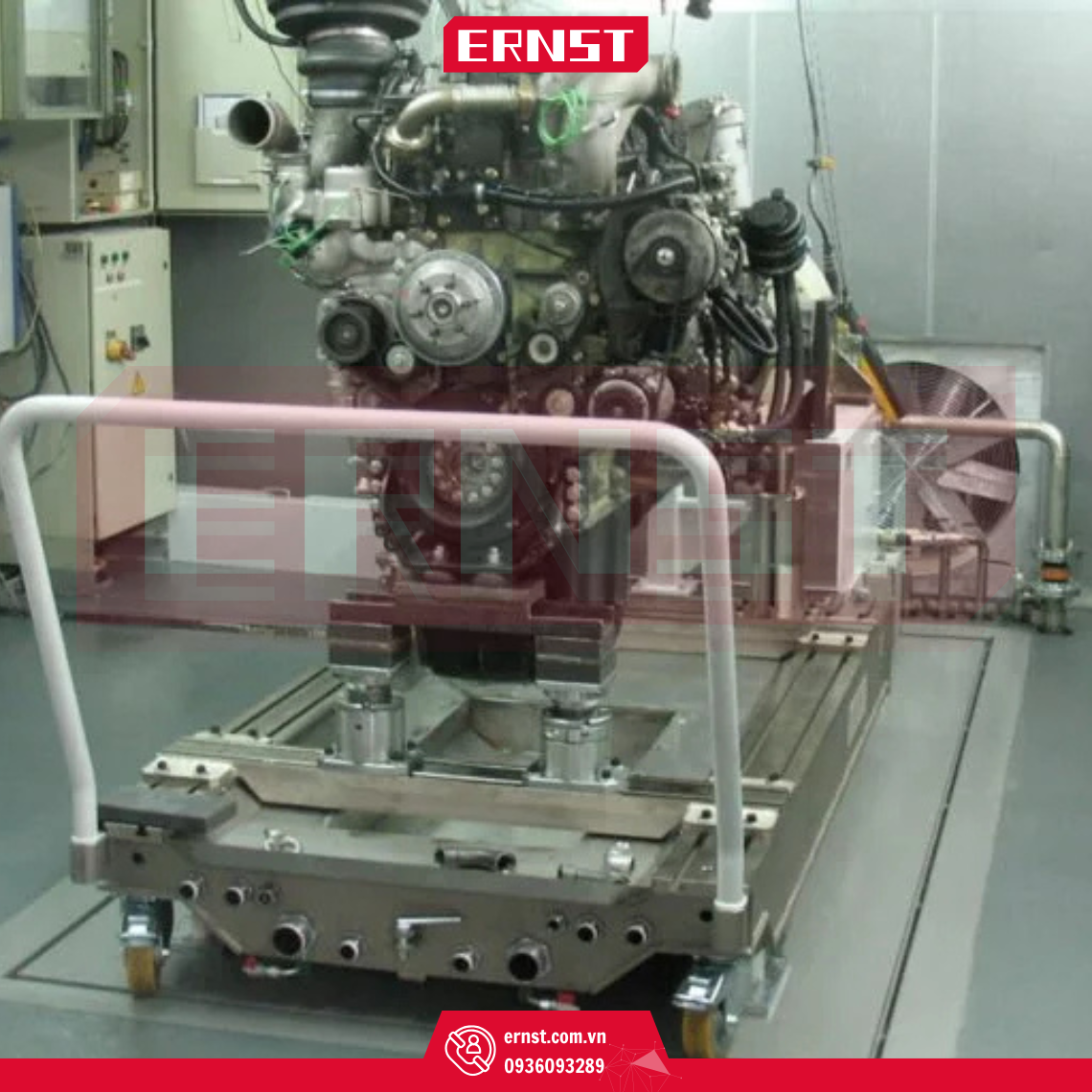

Palett system Kolbenschmidt Neckarsulm
Technical data:
- Quick couplings: 2 x NW16 | 4 x NW25 | 2 x NW32 | 2 x NW50
- Application for light vehicle to heavy-duty
- OPTION: Electrical electrical alignment measuring tool (setup station)
- OPTION: Electrical docking system (setup station)
- OPTION: Electrical docking system (test cells)
- OPTION: Nickel surface
- OPTION: Traverse
- OPTION: Engine supports (Accessories)
- OPTION: Quick couplings (Accessories)
- OPTION: Shaft guard (Accessories)
- OPTION: Base frames (Accessories)
- OPTION: Media block

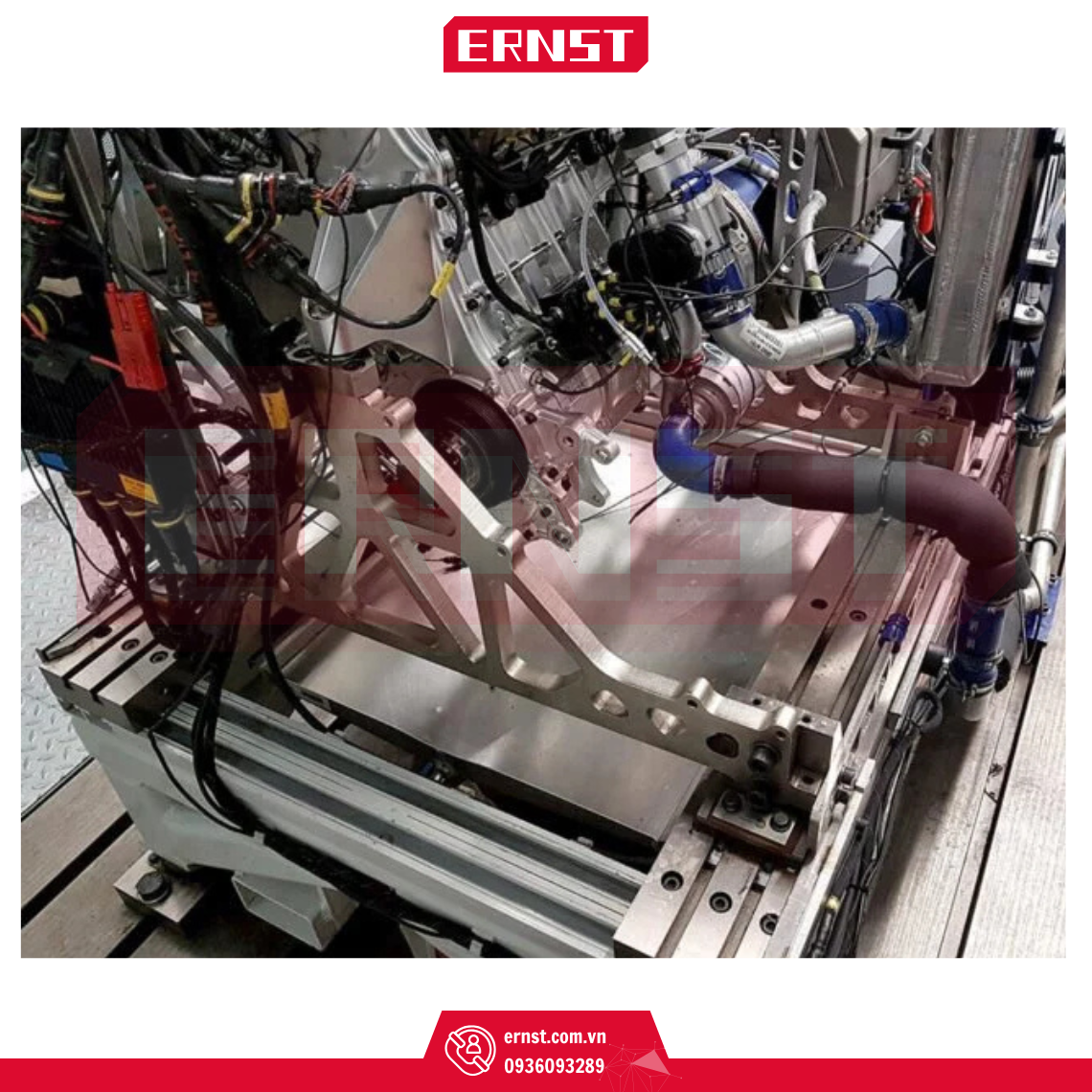

Palett system Hyundai Motorsport Alzenau
Technical data:
- Quick couplings: 2 x NW10 | 6 x NW25 | 2 x NW32 | 2 x NW50
- Application for racing motors
- OPTION: Traverse
- OPTION: Engine supports (Accessories)
- OPTION: Quick couplings (Accessories)
- OPTION: Adaptions and high-speed shafts (Accessories)
- OPTION: Base frames (Accessories)
Palett system Shark Motorsport
Technical data:
- Quick couplings: 2 x NW16 | 4 x NW25 | 2 x NW32 | 2 x NW50
- Application for racing motors
- OPTION: Mechanical alignment gauge for setup station
- OPTION: Mechanical docking system (setup station)
- OPTION: Hydraulic docking system (test cells)
- OPTION: Traverse
- OPTION: Engine supports (Accessories)
- OPTION: Quick couplings (Accessories)
- OPTION: Adaptions and high-speed shafts (Accessories)
- OPTION: Shaft guard (Accessories)
- OPTION: Base frames (Accessories)
- OPTION: Alignment gauge
- OPTION: Media block
Palett system Frauenhofer Karlsruhe
Technical data:
- Quick couplings: 2 x NW10 | 2 x NW25 | 2 x NW40
- Application for serial motors
- OPTION: Mechanical docking system for (test cells)
- OPTION: Traverse
- OPTION: Engine supports (Accessories)
- OPTION: Base frames (Accessories)
Palett system Bosch SchwieberdingenTechnical data:
- Quick couplings: 5 x NW10 | 4 x NW25
- Application for serial motors
- OPTION: Mechanical docking system (test cell)
- OPTION: Traverse
- OPTION: Engine supports (Accessories)
- OPTION: Quick couplings (Accessories)
- OPTION: Media block
Palett system ZFM Autovision WolfsburgTechnical data:
- Application for serial motors
- OPTION: Mechanical docking system (test cells)
- OPTION: Nickel surface
- OPTION: Traverse
- OPTION: Engine supports (Accessories)
