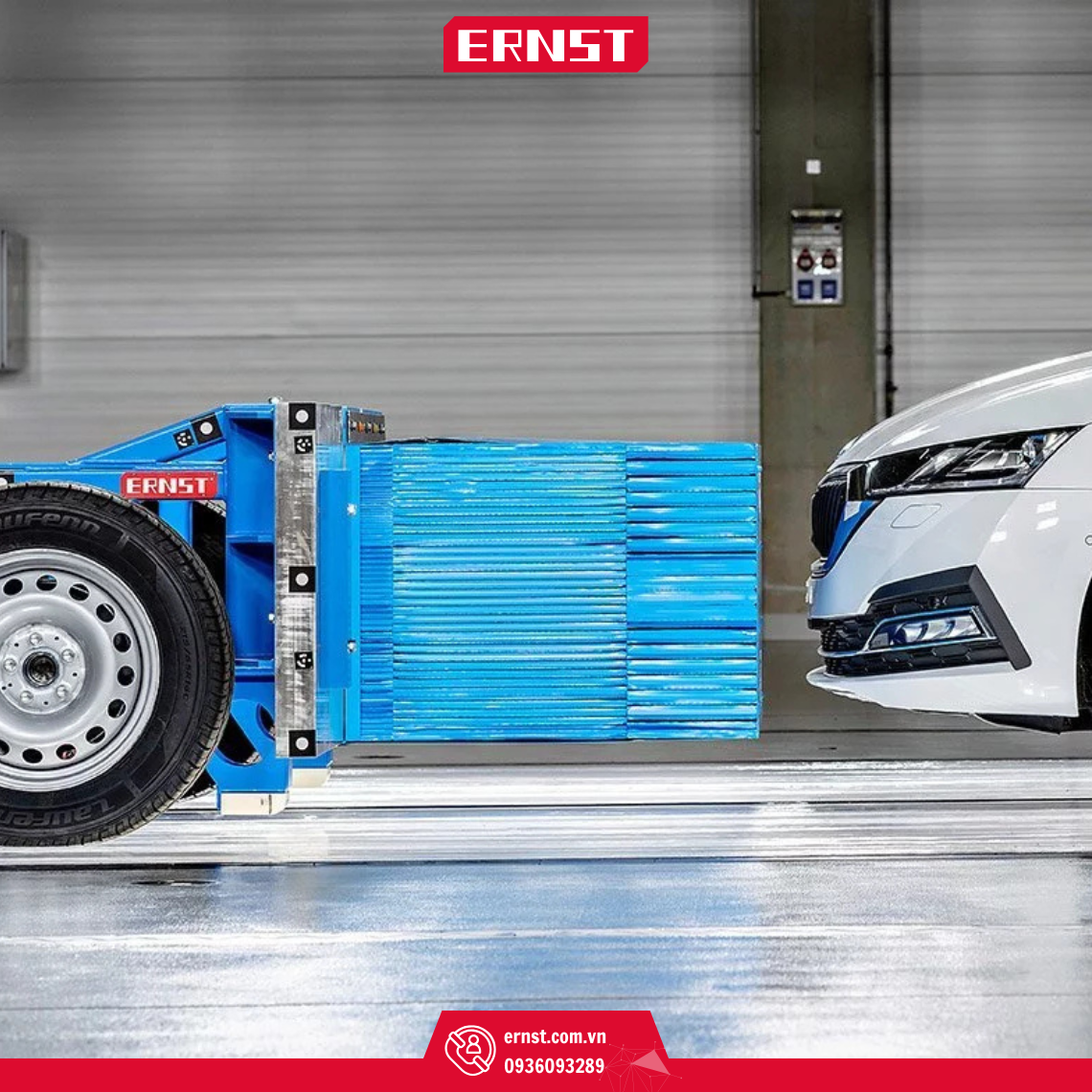

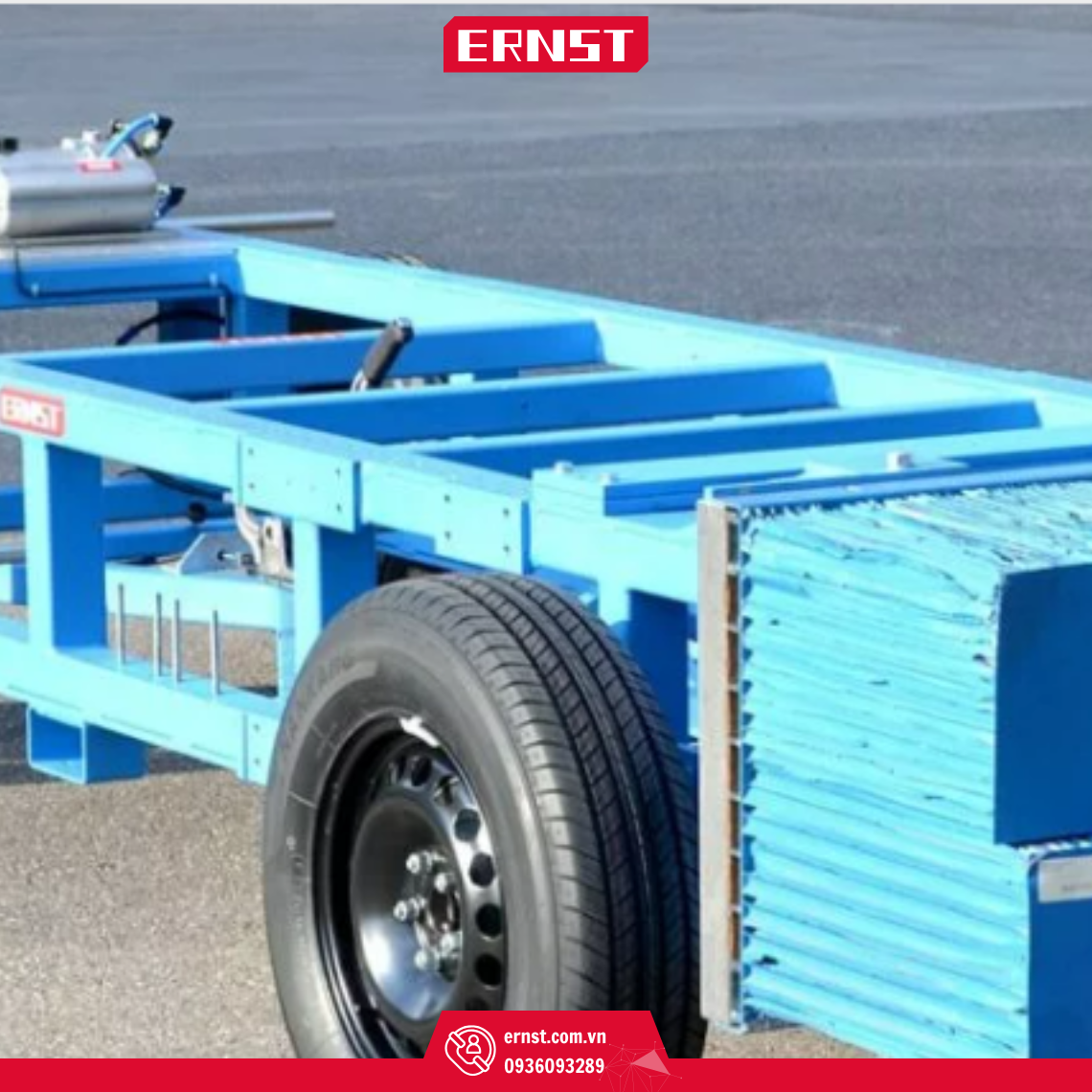

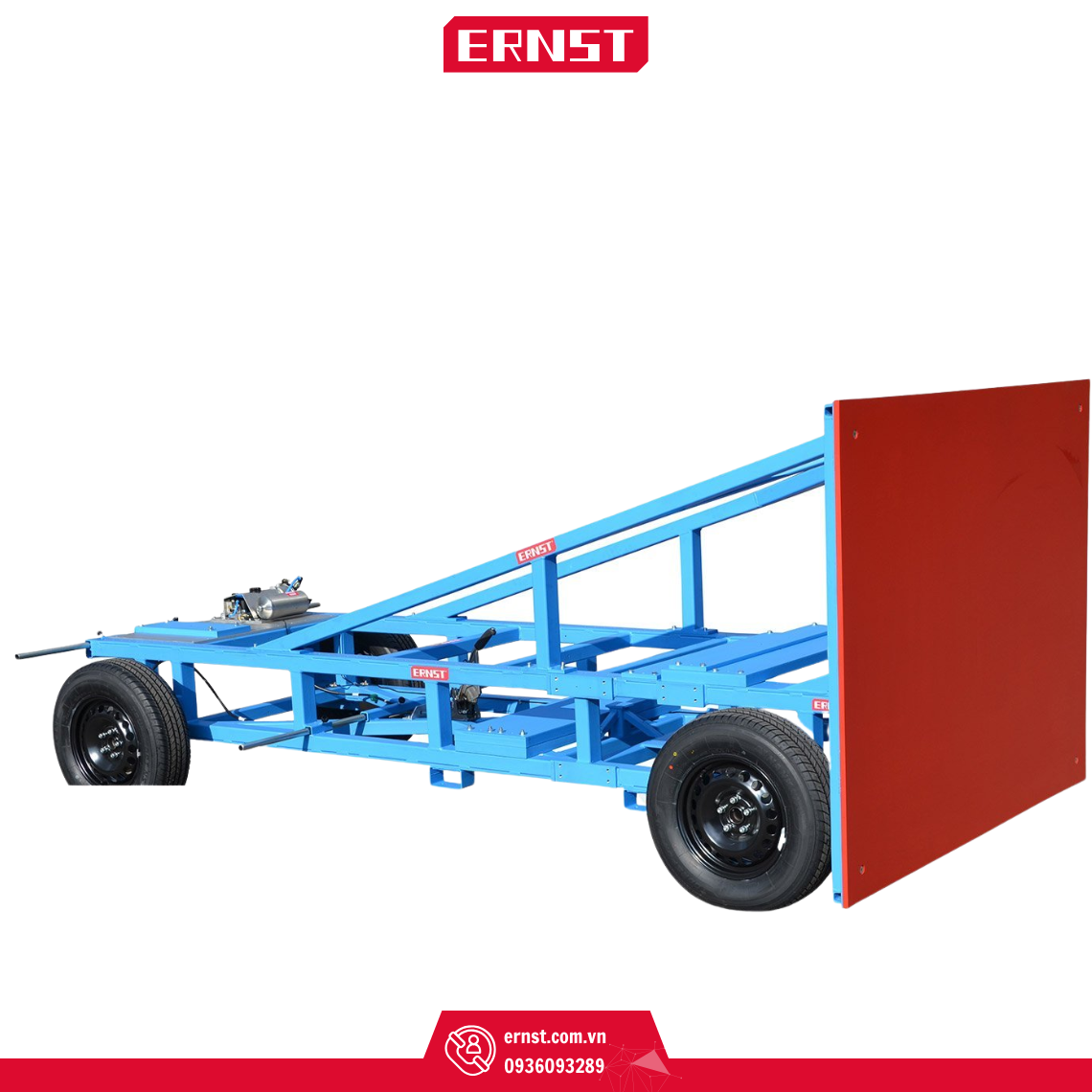

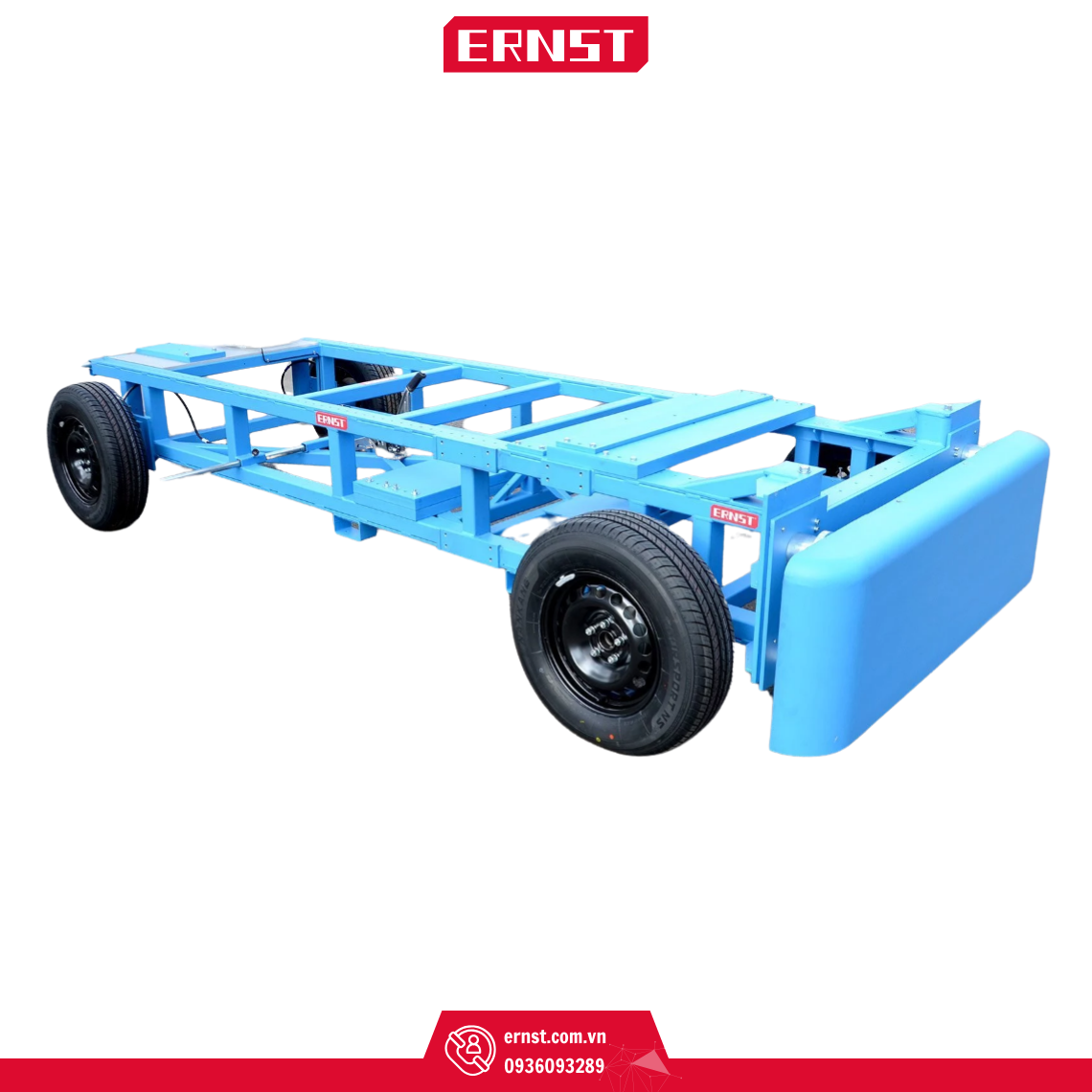

EURO barriers

To better capture the variety of different mobile barriers, we divided the majority into two categories: EURO and US.

These categories essentially describe the frame of the mobile barrier or its basic structure, referring to wheelbase and track width.

In the EURO barriers, the frame structure is generally based on a wheelbase of 3000 mm and a track width of 1500 mm.

To avoid a second impact, the ERNST emergency braking system is mounted on each mobile barrier and effective on all wheels.

Properties

Brake lines are completely integrated into the frame to avoid damage during testing or handling
Calibrated and certified center of gravity and moment of inertia
Individual adaptation in any propulsion system
Height-adjustable front shield
Threaded holes throughout, on top and bottom of frame, to allow use of customer-specific equipment at any time
Center marking for easy alignment with the propulsion system
